TA SERIES FOLDER GLUERS @@@
HIGH SPEED 4-6 CORNER FOLDING AND GLUING MACHINE
@@@@@Straight line Folding with additional Side-fold blank
@@@@@Crash-lock Bottom with Pre-break
@@@@@4/6 Corner box folding
@@@@@Pocket folder device
@@@@@CD envelope, 1, 2 or 3 pockets, with rear glue tab.

@@@@@New model with frame structure, remote control, large color stacking monitor/CCD system,
@@@@@@and touch screen for easy job set-up and user-friendly operation.
@@@@@Individually adjustable Feeder belts with Suction device, and Pneumatic feeder gate lifting device.
@@@@@MANUALLY carriers positioning adjustment with indicators on each carrier to give easy make-ready.
@@@@@PLC programmed two servo motor controlled back-folding system, is capable of all possible jobs
@@@@@@include 4 and 6 points boxes, cake / gift boxes, lock bottom boxes, double sides boxes,
@@@@@@and straight line boxes production.
@@@@@Uniform size of cross bars to allow only one tool adjustment through out the machine.
@@@@@Standard operation side lower glue pot is easy to remove and clean.
@@@@@The upper glue system allowed to adopt Electronic Gold/Hot Melt Glue System depends on jobs demanding.
@@@@@Option Alignment Modular is a Three-Belts system help to straighten a wider and slanting blanks out of
@@@@@@Feeder, also this system allowed to make additional pre-break or pre-fold when this function not in use


MODEL

TA650

TA900

TA1100

Max. Sheet Size


700 mm W 800 mm L

900 mm W 900 mm L

1100 mm W 1100 mm L

Min. Sheet Size

100 mm W 55 mm L

120 mm W 55 mm L

120 mm W 55 mm L

Max. Belt Speed

325 m/min

325 m/min

325 m/min

Overall Length

12140 mm

12740 mm

12740 mm

Overall Height

2000 mm

2000 mm

2000 mm

Overall Width

1350 mm

1550 mm

1750 mm

Main Motor

15Kw

22Kw

22Kw
Conveyor Motor
1.5Kw
2.2Kw 2.2Kw
Max Pumping Capacity
0.7m3/min
0.7m3/min 0.7m3/min
Total Weight :
7500 Kg
7800 Kg 8000 Kg


@@@@Electronic Glue System (Optional)
@@@@ @@Order separately with choice of HHS or NORDSON .
@@@@@@@@We are able to order this glue system for customers with special OEM price discount,
@@@@@@@@and will install the glue system on machine in factory without extra cost

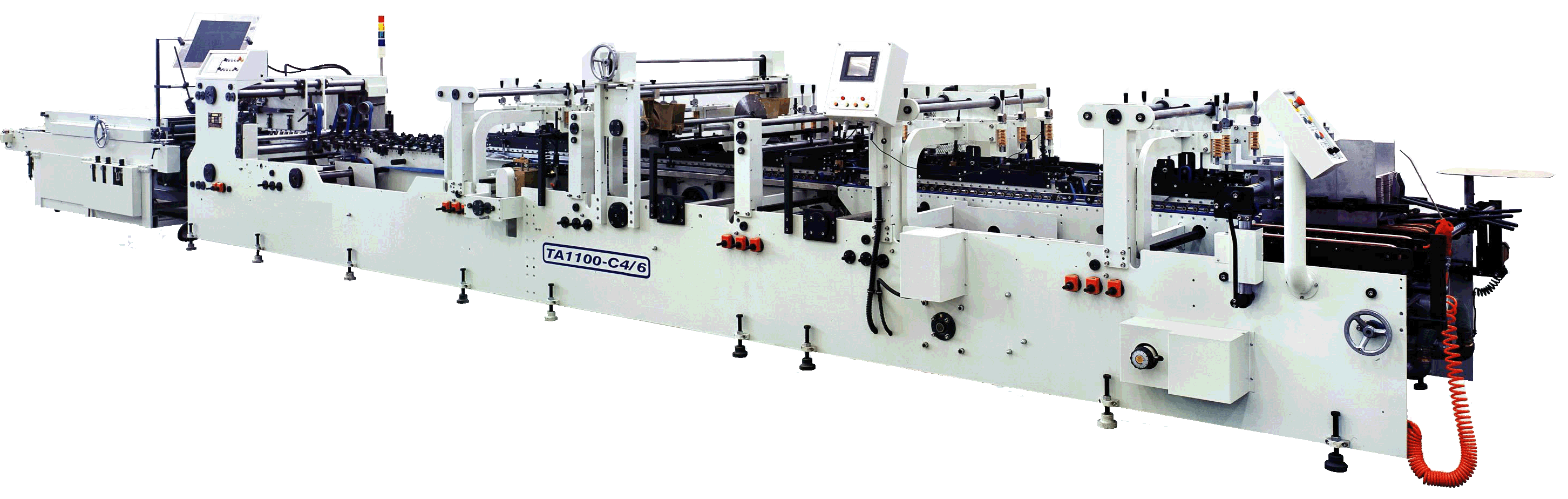

HIGH SPEED 4-6 CORNER FOLDING AND GLUING MACHINE TA1100-C6-II


Specifications :

Max. Sheet Size

:1100 mm W 800 mm L

Min. Sheet Size

:126 mm W 60 mm L
:76 mm W 60mm L (Small Box Folding Device Applied as Optional)

Max. Belt Speed

:320 m/min

Overall Length

:about 12300 mm

Overall Height

:about 1600 mm

Overall Width

:about 2300 mm

Main Motor

:about 17 Kw

Max Pumping Capacity

:0.7m3/min

Total Weight

:about 7500 Kg
