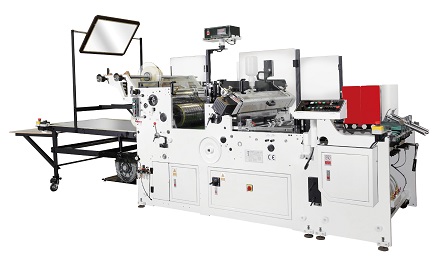

WINDOW PATCHING MACHINE |
| Model WPA Series |
| |
|
Specification:
|
WPA-1000BF / 1000SV |
WPA-1000DBF / DSV |
|
Timing Belt Feeder / Servo Motor |
Double-Line Film |
Blank Length |
100 mm - 710 mm |
100 mm - 710 mm |
Blank Width |
80 mm - 1000 mm |
80 mm - 480 mm |
Film Length |
38 mm - 520 mm |
38 mm - 520 mm |
Film Length
blank length less than 330mm |
38 mm - 360 mm |
38 mm - 360 mm |
Film Width |
30 mm - 840 mm |
30 mm - 400 mm |
Film Thickness |
0.03 mm - 0.20 mm ( Straight preparation ) |
Feed Material |
Cardboard¡AE-flute Corrugated Board |
Max. Working Speed |
Length over than 330 mm |
150 sheets/min |
300 sheets/min |
Length less than 330 mm |
300 sheets/min |
600 sheets/min |
Power Supply: |
Model |
WPA-1000SV/DSV |
WPA-1000BF/DBF |
Main Motor |
3.75 KW |
3.75 KW |
High speed blower (A)
for film cutter |
3.75 KW |
3.75 KW |
High speed blower (B)
Suction conveyor belt between gluing and filming. |
1.5 KW |
1.5 KW |
High speed blower (C)
for suction feeder belt |
0.75 KW |
0.75 KW |
Vibration Motor |
0.05 KW |
NO. |
Conveyor Motor |
0.2 KW |
0.2 KW |
Glue Wheel Motor |
40 W |
40 W |
Air Compressor |
0.75 KW |
0.75 KW |
Feeder Servo Motor (DSV) |
1.3 KW |
NO. |
Feeder Servo Motor |
1.8 KW |
NO. |
Film Servo Motor |
0.9 KW |
NO. |
Total Power Required / (DSV) |
13.49 KW / 14.79 KW |
10.74 KW |
|
| |
| |

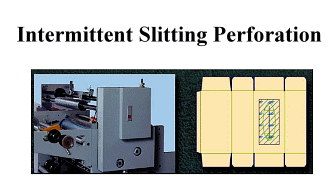

Job Demo |
|
|
Double-Line Film |
Express Folder |
|
|
| |
|
|
| |
|
|
|
|
|
|
