@@@@@@We provide full line CORRUGATOR MAKING EQUIPMENTS,ENVELOPE MAKING
@@@@@@With 3 ply - 5 ply - 7 ply, and Width from 1.6 M to 2.5 M.
@@@@@@@The Corrugator production equipment is designed and engineered to bring productivity,

@@@@@@@quality and dependable performance to our customers.




A, B, C, E, F Flutes corrugator combination selected by customers.

A flute

34 2 flutes/300 mm

Height of flute 4.7 0.15 mm

B flute

48 2 flutes/300 mm

Height of flute 2.8 0.15 mm

C flute

40 2 flutes/300 mm

Height of flute 3.7 0.15 mm

E flute

85 2 flutes/300 mm

Height of flute 1.5 0.15 mm

F flute

126 2 flutes/300 mm

Height of flute 0.95 0.15 mm


Double Wall Corrugator Line Specifications

Model

160

180

220

250

Max. Paper Width

1600 mm

1800 mm

2200 mm

2500 mm

Steam Pressure

12 kg/cT

12 kg/cT

12 kg/cT

12 kg/cT

Air Pressure

7 kg/cT

7 kg/cT

7 kg/cT

7 kg/cT

Designed Speed
(Meter/Minute)

150@200?? 250

150?? ?200?? ?250

150?? 200?? ?250

150@ 200@ 250

Steam Cons. (kg/hr)

2000? 2200? 2500

2400?? 2700?? 3000

3500? 3700?? 4000

4000@4200@4500

Power Required HP

180?? 200??? 220

230??? 250??? 280

300?? 320 @@350

570@ 600 @650

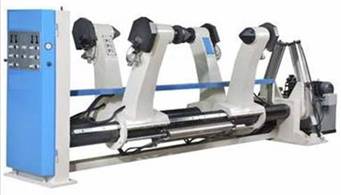

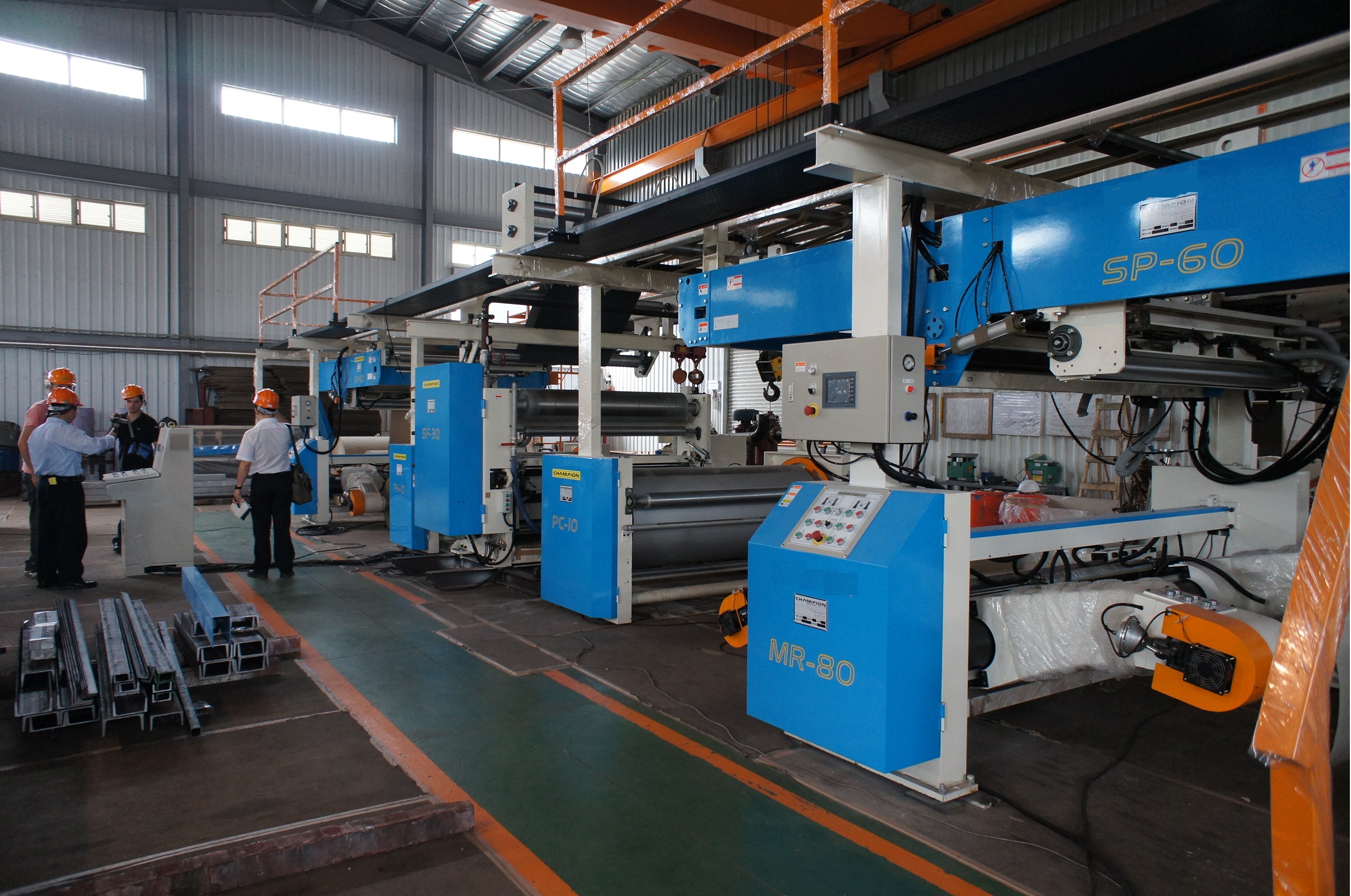

MILL ROLL STAND

AUTO SPLICER (as an Option)

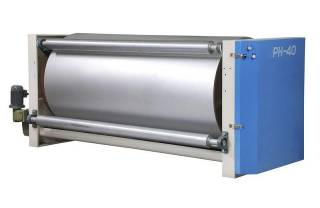

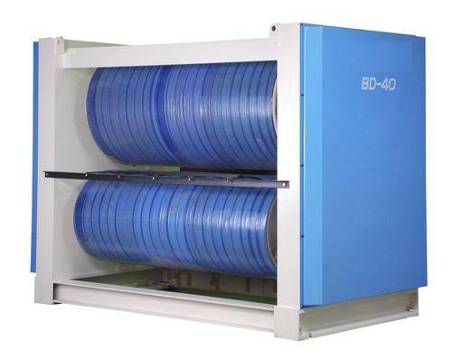

PRE-HEATER

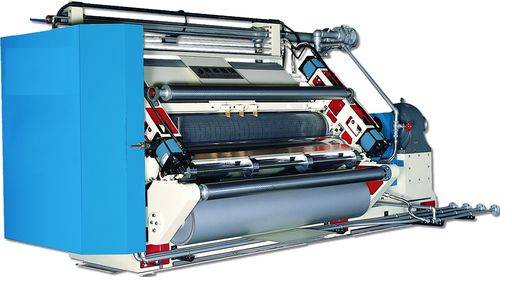

FINGERLESS SINGLE FACER
OVERHEAD BRIDGE
DUPLEX PREHEATER / TRIPLEX PREHEATER
GLUE MACHINE

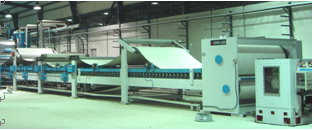

DOUBLE FACER

DRIVING EQUIPMENT

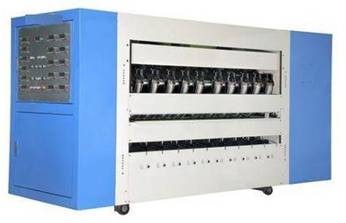

NC SLITTER SCORER
NC CUTTER
SHEET DELIVERY

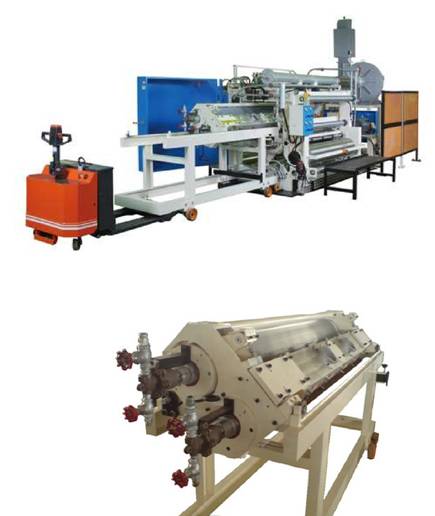

@ @@@NEW!! CASSETTE SINGLE FACER (BLOWING TYPE)
@@@@@ @@@@@

@@
@@@ It is making the medium to be impressed through the corrugated roll and became the corrugated type,:
@@@@ @then glued on the corrugated top and sticking with the liner to be single facer.
@@@ Corrugating type device adopts excellent combination in order to save paper.
@@@ The forward / afterward moving of Glue Unit is also controlled by 2 pc of hydraulic cylinder:

@@@@ @DIA. 80 x ST50, and operated with the magnetic valve.

@@@ While changing the corrugated roll set, upper and lower corrugated roll units are positioned by V type
@@@@@block, left/right is positioned by DIA. 80 x 100 ST hydraulic cylinder pushing slanting block
@@@ The whole gluing platform is installed in the interior side frame, the gluing platform is pushing out by
@@@@@ hydraulic cylinder driven, easy for clean, the position for gluing platform is adopted cone structure,
@@@@equipped with hydraulic cylinder for precision position.
