Corrugated Carton Making Equipment

Flexo Printer . Rotary Die Cutter . Stacker . Semi Auto Gluer & Stitcher . Automatic Partition Slotter . Rotary Slitter Creaser

AUTO REGISTER FLEXO PRINTERSLOTTER PS-500
Optional With LEAD EDGE FEEDER

MODEL NO

PS-500

PS-500L

Max. board Size

1200 × 2500 mm

1200 × 2800 mm

Skip Feed Size

1450 × 2500 mm

1450 × 2800 mm

Max. Printing Area

1170 × 2400 mm

1170 × 2700 mm

Min. Board Size

290 × 600 mm

290 × 600 mm

Slot Width

7.5 mm

7.5 mm

 Min. Carton Height

100 mm

100 mm

Glue Lap Width

45 mm

45 mm

Capacity

180 Sheets/Min

160 Sheets/Min

FLEXO PRINTER SLOTTER¡@ PS-120
LONG WAY FLEXO PRINTER SOTTER CF-12

MODEL NO.

PS-120

MODEL NO.

 CF-12

Max. Sheet Size

1200 ¡Ñ 2500 mm

Max. Sheet Size¡@

2200 ¡Ñ 2350 mm

Min. Sheet Size

290 ¡Ñ 600 mm

Min. Sheet Size¡@¡@

 330 ¡Ñ 600 mm

Max. Printing Area

1200 ¡Ñ 2400 mm

Max. Printing Area¡@

2100 ¡Ñ 2350 mm

Skip Feed Size

1450 x 2500 mm

Printing cylinder lateral adjustment¡@

 25 mm

Slot Width

7.5 mm

-----

Min. Carton Height

100 mm

Power Required

10.5 HP

Glue Lap Width

45 mm

Length of Machine

6250 mm

Capacity

160 Sheets/Min

Capacity

60 Sheets/Min

AUTOMATIC PARTITION SLOTTER PS-900
ROTARY DIE CUTTER¡@DC-2

Machine Inside Width : 1000 mm
Max. Sheet Size : 570 x 900 mm
Min. Sheet Size : 140 x 450 mm
Max. Slot Distance : 250 mm
Min. Slot Distance : 50 mm
Capacity : 60 ¡V 180 Sheets/Min

Standard Die Mould Size : 440 mm
Max. Sheet Size : 1500 x 2400 mm
Min. Sheet Size : 300 x 500 mm
Capacity : 110 Sheets/Min



AUTO STACKER STK-30
ROTARY SLITTER CREASER RSC-80

Max. Sheet Size : 1450 x 2400 mm
Min. Sheet Size : 280 x 500 mm
Stack Height : 1700 mm
Power Required : 6 HP

Max. Sheet Size : 2400 mm
Min. Slitting Width : 70 mm
Min. Creasing Width : 12 mm
Capacity : 150 Sheets/Min

ECCENTRIC SLOTTER & CORNER CUTTER
OES-80
AUTO REGISTER ROTARY SLOTTER &CREASER
¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@ARS-58AE

Max. Sheet Size : 2400 mm
Min. Slotter Gap : 12 mm
Capacity : 55 Sheets/Min
Power Required : 2 HP

Max. Sheet Size : 1500 x 2400 mm
Skip Feed Size : 1750 x 2400 mm
Min. Sheet Size : 310 x 600 mm
Machine Speed : 130 Sheets/Min

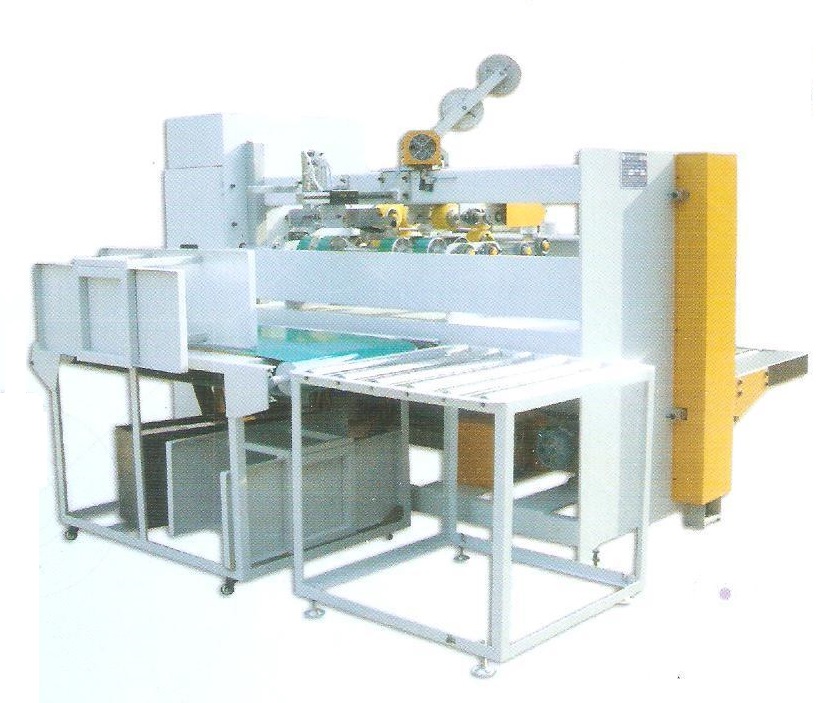

SPEEDING SEMI AUTO STITCHING MACHINE¡@
¡@¡@¡@¡@¡@ ¡@¡@¡@¡@AS-016A
TWO-PIECE JOINT STITCHING MACHINE
¡@¡@¡@¡@¡@¡@¡@¡@¡@ AS-009

Max. (L + W) x 2 : 2460 mm
Min. (L + W) x 2 : 606 mm
Max. (W + H) x 2 : 1515 mm
Min. (W + H) x 2 : 300 mm
Height Of Feeder : 900 mm
Machine Speed : 400 Stitch/Min
Stitching Pitch : 30 ¡V 100 mm
Number of Stitching : 1 ¡V 99
Power Required : 6 HP
Machine Size : 2800 L x 2600 W mm
Machine Weight : 2000 kg


Suitable for single, double pieces and

3~8mm irregular Corrugated carton stitching.

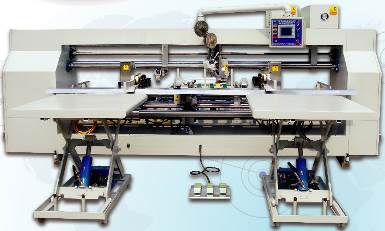

Model AS-009A AS-009B AS-009C
Max.Sheet Size (A+B)x2 : 4800 mm : 5400 mm : 6000 mm
Min.Sheet Size (A+B) x2 : 1380 mm : 1380 mm : 1380 mm
Sheet Length (A) : 1200 mm – 570 mm : 1350 mm – 570 mm : 1500 mm ¡V 570 mm
Sheet Width (B) : 1200 mm - 120 mm : 1200 mm - 120 mm : 1200 mm - 120 mm
Min. Sheet Height : 400 mm : 400 mm : 400 mm
Stitching Pitch : 30 – 100 mm : 30 – 100 mm : 30 ¡V 100 mm
Number of Stitching : 1 – 99 Stitches : 1 – 99 Stitches : 1 ¡V 99 Stitches
Machine Speed : 400 Stitch/Min : 400 Stitch/Min : 400 Stitch/Min
Max.Stopper Measurement : 600 mm : 600 mm : 600 mm
Max. TS Width : 40 mm : 40 mm : 40 mm
Min. First Stitch Pitch : 20 mm : 20 mm : 20 mm



SEMI AUTO GLUE MACHINE AS-027

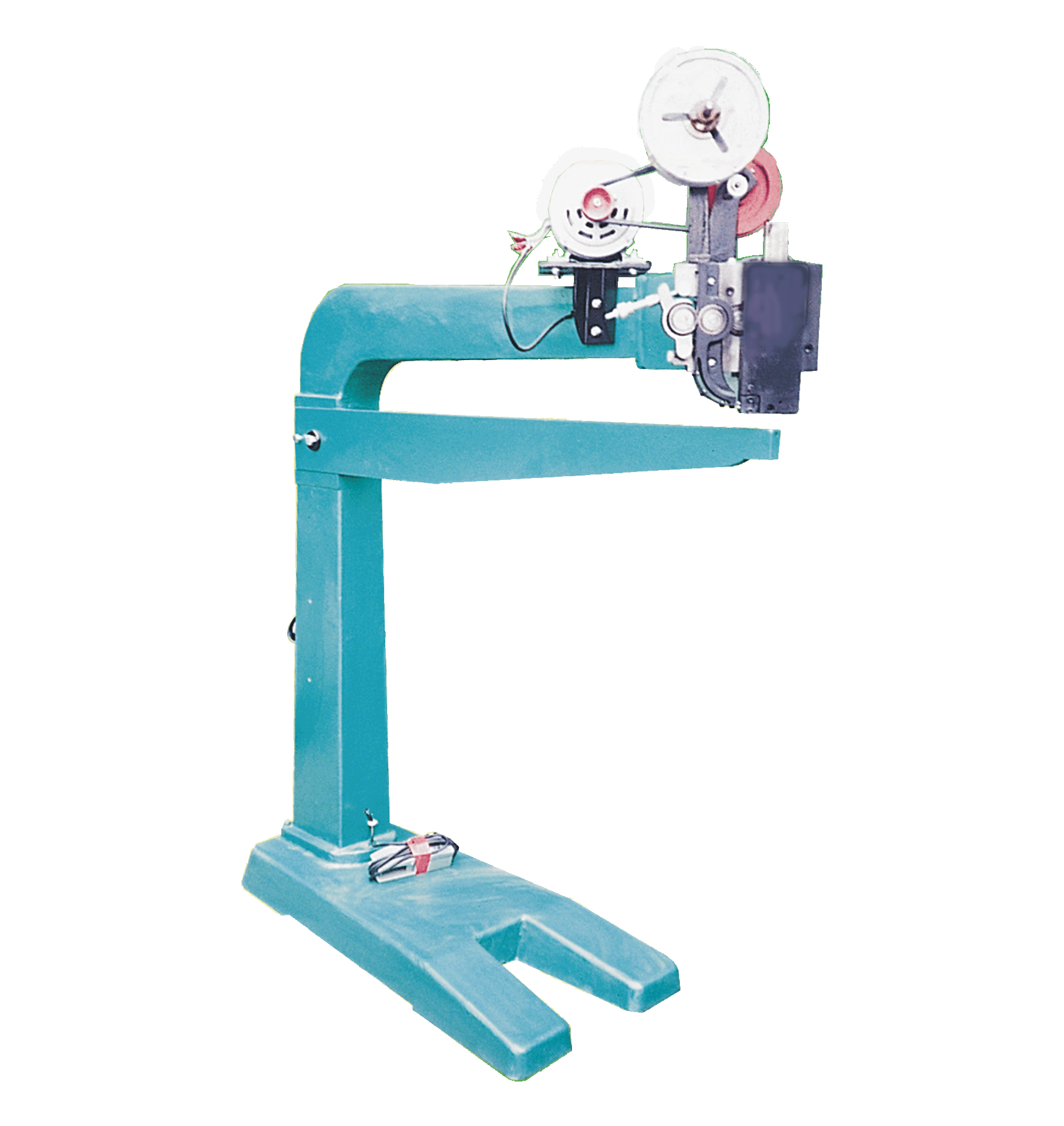

ARM STITCHER BN-50
Glue machine suitable for A,B and E flute
corrugated cardboard and decorated board

Max. Sheet Size
: 1515 x 2740 mm
Min. Sheet Size

: 240 x 320 mm
Max. Glue lap
: 45 mm
Capacity
: 40 M/min
Power Required
: 4.5 HP
Adhesive applied

: RESIN

Arm bed length : 1500 mm
Stitching Speed : 350 strokes/min
Stitching Type : Electromagnetic Clutch
Power Required : 1/4 HP

¡@¡@
AUTO TYING MACHINE CT-100
FULLY AUTO TYING MACHINE SY-504

Max. Tying Size : 80 x 100 cm
Min. Tying Size : 16 x 20 cm
Power Required : 1/2 HP
Machine Size : 118 L x 153 W x 185 H cm
Machine Weight : 207 KG

Applied #50 PE Twin.
Power Required : 4 HP
Air Pressure Required : 4¡V 6 kg/cm2
Tying Speed : 18~20 times/min
Machine Weight : 1800 kg
Machine Size : 2800 L x 2100 W x 1850 H mm
¡@¡@
