100% MADE FROM POLYETHYLENE & POLYPROPYLENE
1.PE TYING TAPE, TWISTED
¡@Applied on Auto Tying Machine.





2. PE Tape, for packing, agriculture, water
¡@ fowl and timber.
3. PP Soft Tape, for Packing & Bundle
4. PP 3-Ply Soft Rope, for shipping bag and Canvas.
5. PP BS String, Raffia, for DIY, Handicraft, hand
¡@ knitting and crochet yarn.
6. PP Twisted, 1-ply, 2-ply for weaving.

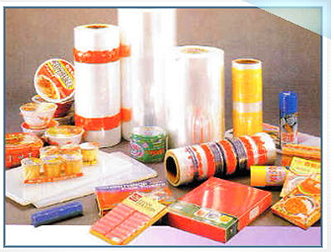

POLYPROPYLENE SHRINK FILM for PACKING MACHINE

Applications on Outer Packaging
Instant noodles in cup and bowl

Books, magazines, stationeries and office supplies.

Aerosol cans and hygienic products.
Soaps, Detergent bars and toiletries
Video tapes, CD, VCD, DVD and multi-media items
Phones, calculators and other Electronic Accessories



THICKNESS

WIDTH

LENGTH

Single Wound

12£gm

200mm~1500mm ( 8~55 inches )

3000M

15£gm

200mm~1500mm ( 8~55 inches )

2000M

20£gm

200mm~1500mm ( 8~55 inches )

2000M

Center Fold

15£gm

200mm~1500mm ( 8~55 inches )

500M

20£gm

200mm~1500mm ( 8~55 inches )

500M



THICKNESS

WIDTH

LENGTH

Single Wound

13£gm

200mm~1500mm

3000M

 15£gm

200mm~1500mm

2000M

19£gm

200mm~1500mm

2000M

25£gm

200mm~1500mm

2000M

50gauge

8 inch~ 55 inch

8750ft

60gauge

8 inch~ 55 inch

8750ft

75gauge

8 inch~ 55 inch

7000ft

100gauge

8 inch~ 55 inch

5250ft

Center Fold

15£gm (60 gauge)

200mm~1500mm ( 8~ 55 inches )

1332m (4370ft)

19£gm (75 gauge)

200mm~1500mm ( 8~ 55 inches )

1067m (3500ft)

25£gm (100 gauge)

200mm~1500mm ( 8~ 55 inches )

800m (2625ft)

30£gm (120 gauge)

200mm~1500mm ( 8~ 55 inches )

666m (2185ft)

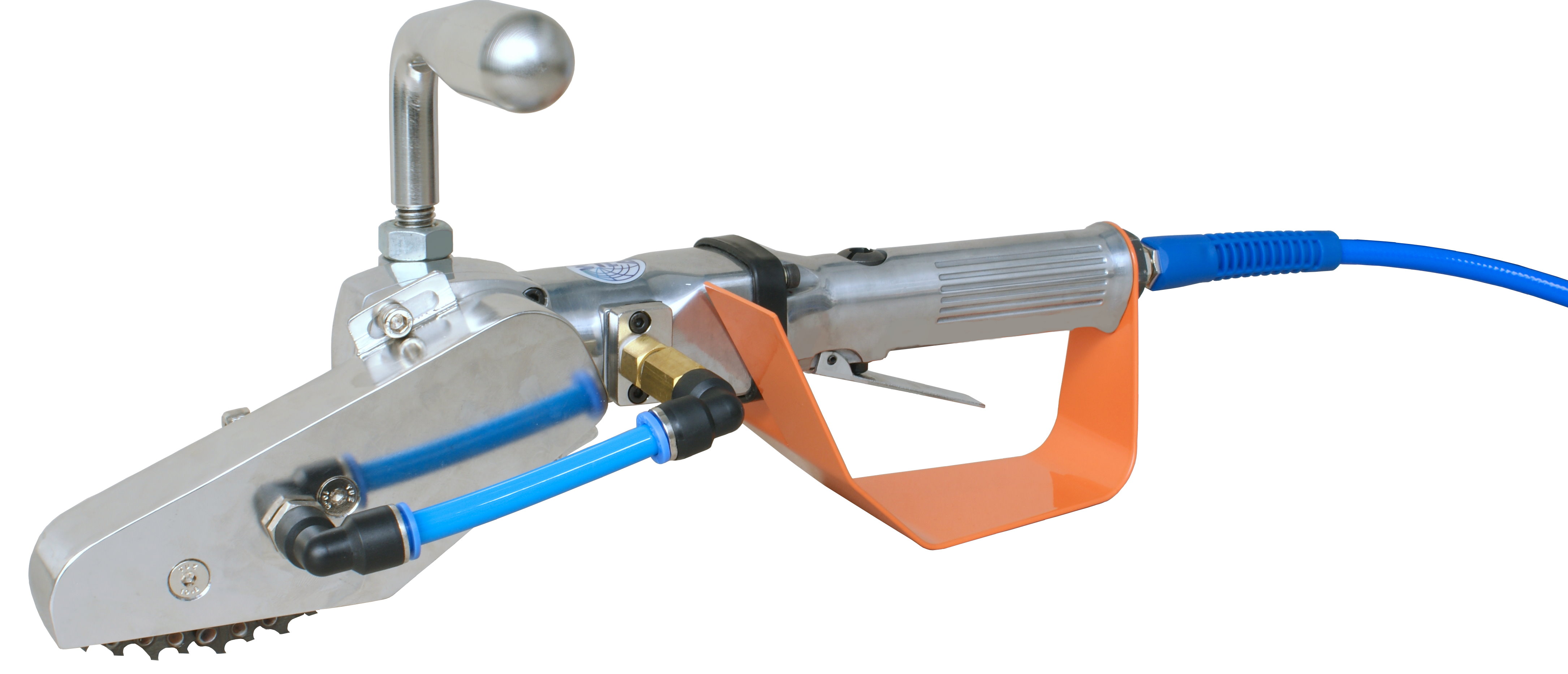

CARTON STRIPPER

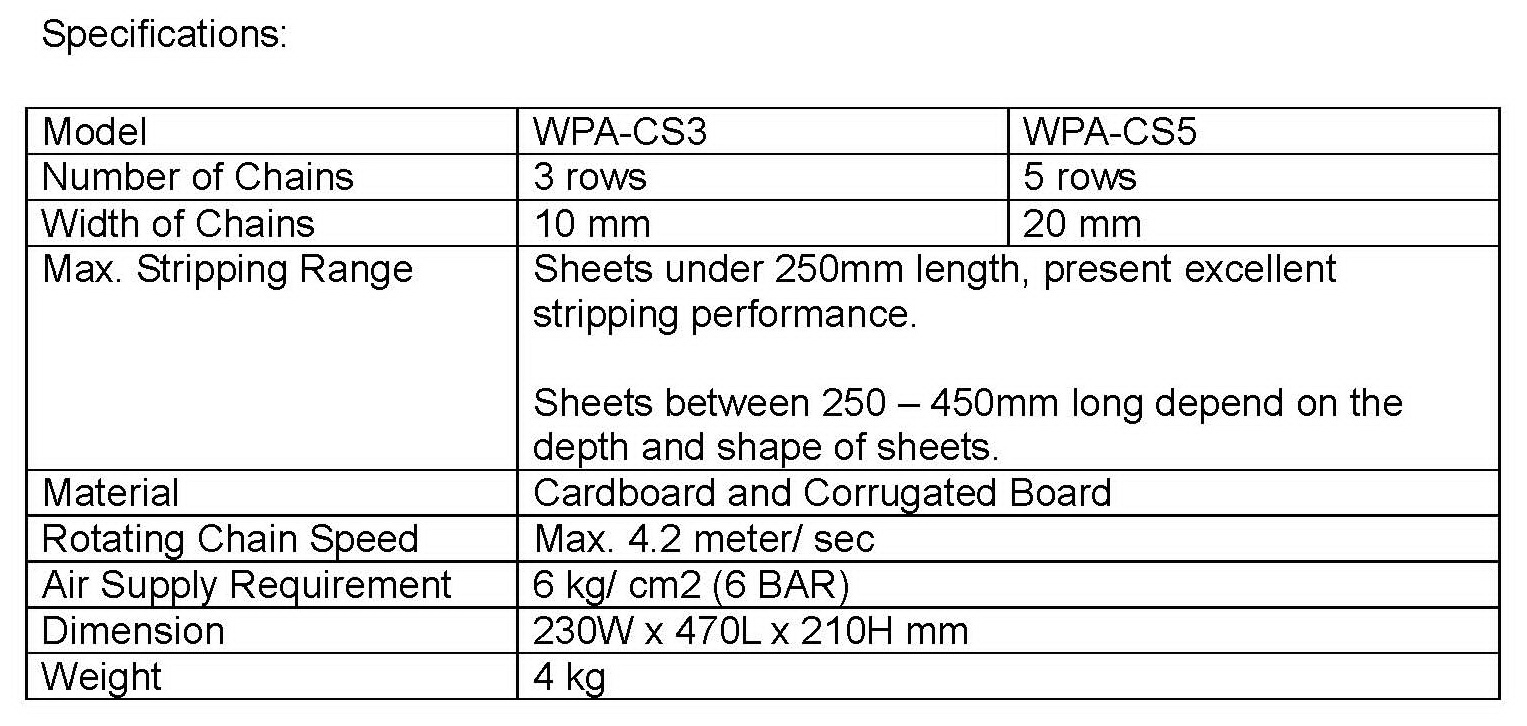

Specifications:

Model

WPA-CS3

WPA-CS5

Number of chains

3 rows

5 rows

Width of chains

10 mm

20 mm

Max. stripping range

Sheets under 250mm length, present excellent stripping performance.

Sheets between 250 ~ 450mm long depend on the depth and shape of sheets.

Material

Cardboard and Corrugated Board

Rotating chain speed

Max. 4.2 meter / second

Air supply requirement

6 kg/cm2 (6 BAR)

Dimension

230 W x 470 L x 210 H mm

Net weight

4 kg

Gross weight

8 kg (packed in carton box)

¡@¡@¡@

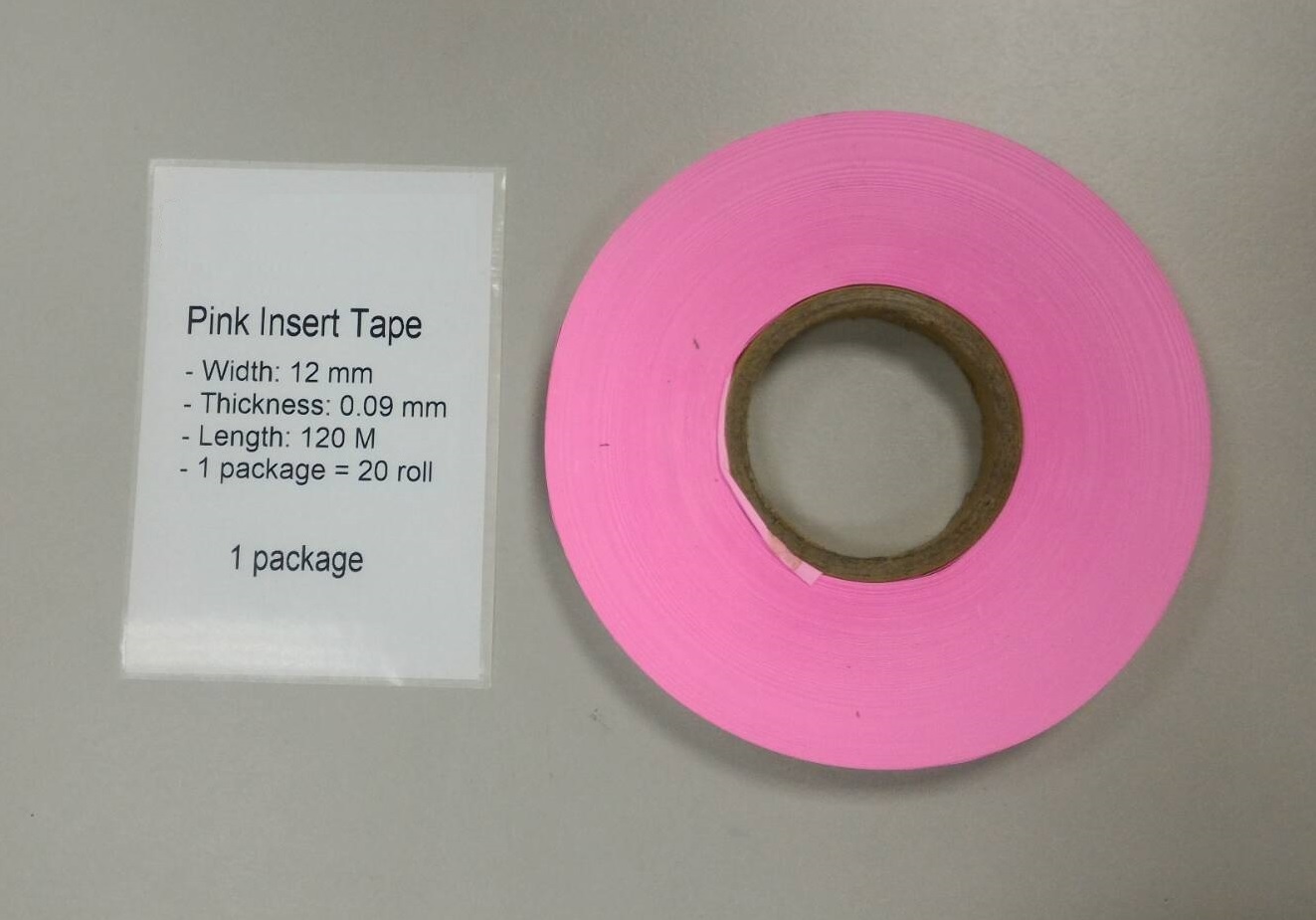

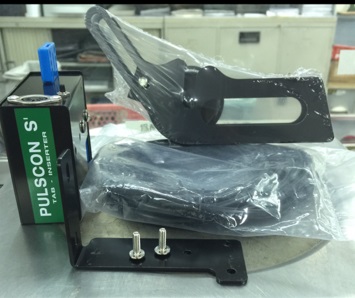

TAB INSERTER

 Available size :

12mm ( Track 13mm )

13 mm ( Track 14mm )

15mm ( Track 16.5mm )

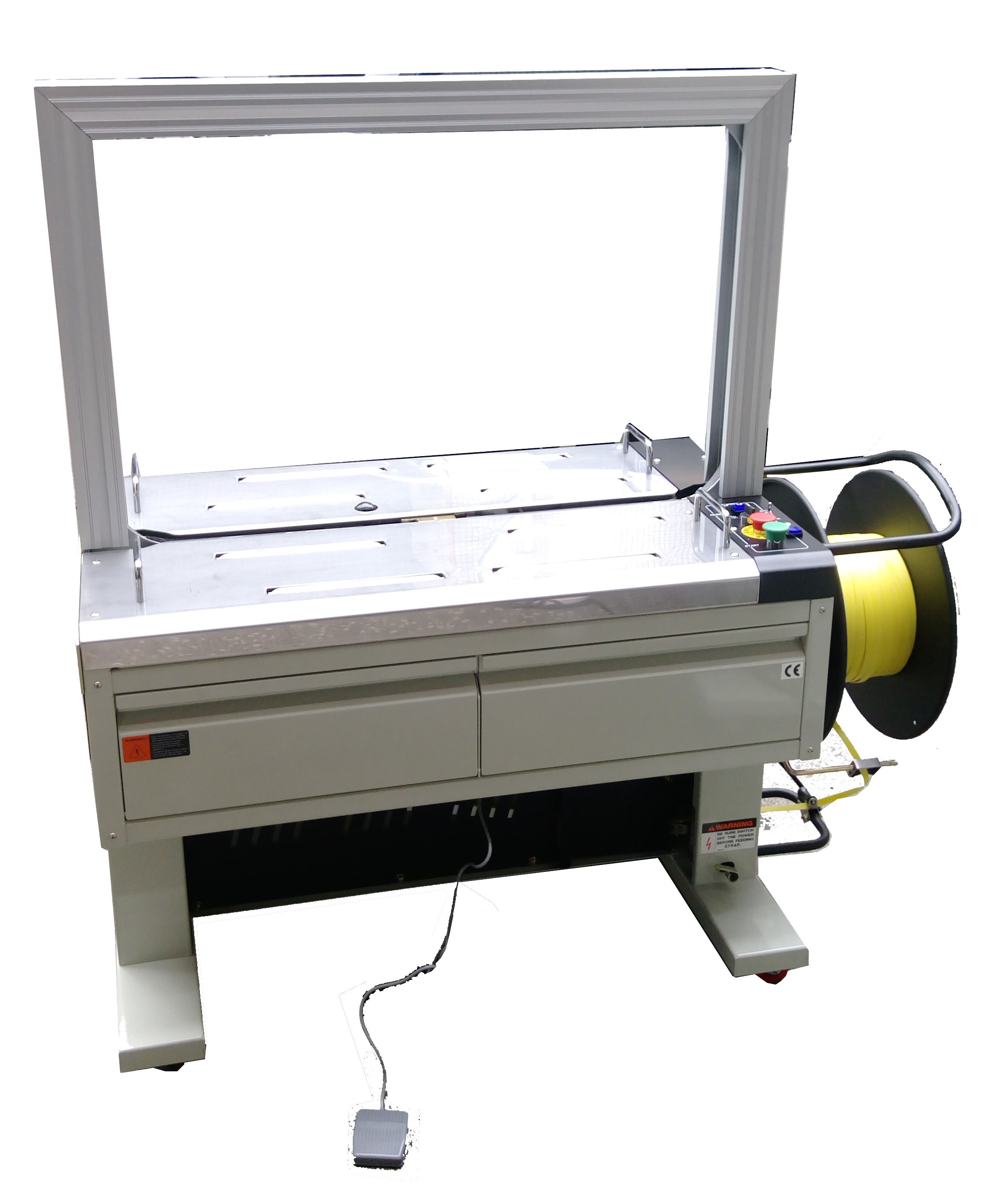

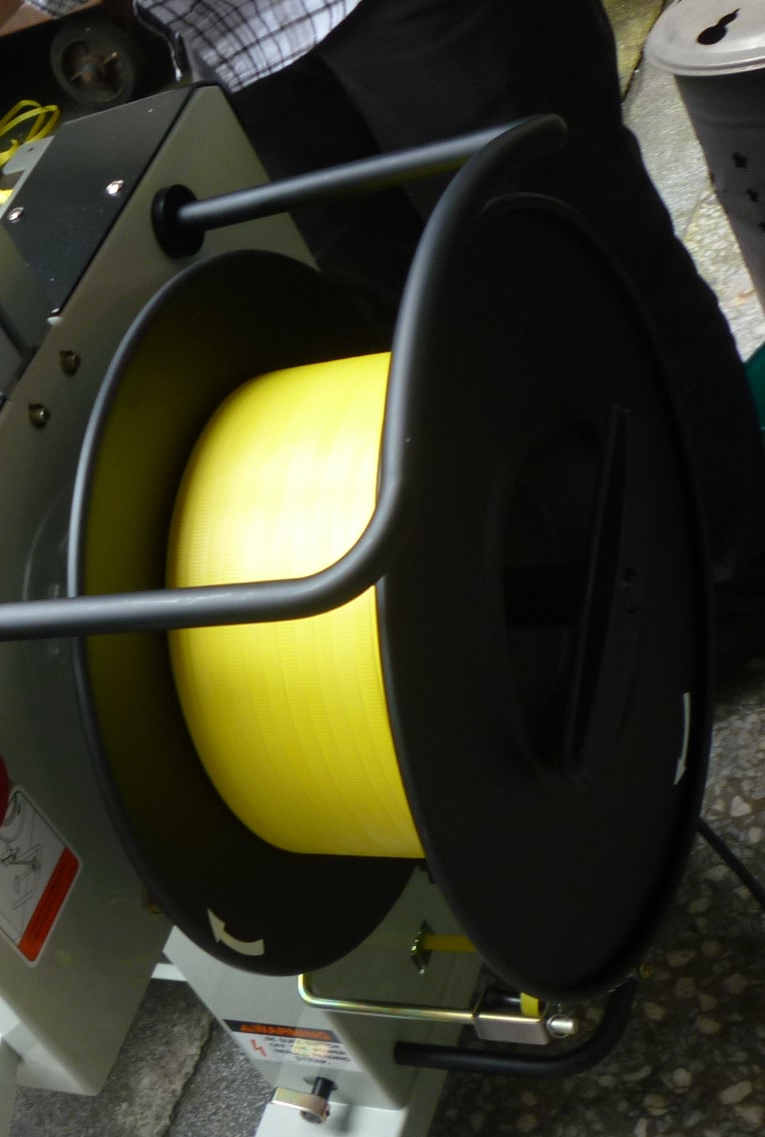

PP STRAPPING



PP TAPE

12mm(W) x 0.6mm(T) x 10kg(One Roll)

RESPECTFUL OF ENVIRONMENT TYPE UV RESIN¡@¡@¡@

WATER BASE OVERPRINTING VARNISH
Model CH-10111

UV CURING SEMI-MAT VARNISH
Model CH-82801

Specifications :
Composition : Emulsion of Polyacrylate
Viscosity (Ford Cup #4@25°C)50+/- 5 second.
Appearance : Milky white liquid.
Solvent : Water
Solid Content : 44+/- 2 %
PH : 8.5 +/- 0.5
Odor : Slight ammonia odor

Specifications :
Composition : Epoxy Acrylate Resin
Viscosity (cps@25°C) : 270 +/- 50
Appearance : Milky Yellow liquid
Solvent :
Effective Ingredient : 99 ¢H
Odor : Slight ammonia odor

Characteristic :
High gloss appearance
Good levelling ability
Fast drying
Good abrasion resistance
Non-yellowing
Good for papers.
Store place temperature not less than 4°C

Characteristic :
Excellent mating property
Best abrasion resistance
High hardness
Superior adhesion
Non-Yellowing

Processing Equipment :
Varnish Roller coater on printing machine or offline varnish coating machine.
Operating Conditions :
Drying conditions : dry with short wave infrared rays.

Processing Equipment :
Varnish Roller coater on printing machine or offline varnish coating machine.
Operating Conditions :
Polymerization conditions : UV Curing (80 watt/cm high pressure mercurial light or metallic halogen light)



WATER BASE OPP LAMINATING ADHESIVE
Model CH-20420

MAT WATER BASE OVERPRINTING VARNISH
Model CH-20304

Specifications :
Composition : Copolymer of acrylate Emulsion
Viscosity (Ford Cup #4@25°C)16.5 +/- 1 second.
Appearance : Milky white liquid.
Solvent : Water
Solid Content : 48+/- 2%
PH : 8.5 +/- 0.5
Odor : Slight ammonia odor

Specifications :
Composition : Emulsion of Polyacrylate
Viscosity (For cup #4@25°C) : 54 +/- 5 seconds
Appearance : Milky white liquid
Solvent : Water
Solid Content : 38 +/- 2¢H
PH : 8.5 –9
Odor : Slight ammonia odor

Characteristic :
High gloss appearance
Good operating environment
Good ability to printing ink
Stable quality for processing
Store place temperature not less than 4°C

Characteristic :
Good adhesion with printing ink
Excellent mating property
Suited for inline printing varnish
Match European environment regulation
Store place temperature not less than4°C

Processing Equipment :
OPP Laminating machine
Operating Conditions :
¡@a. applied on paper, speed control :
¡@¡@¡@20 – 55 M/MIN.
¡@b. drying temperature : 65 – 85 °C
¡@c. Laminating temperature : 80 – 90°C
¡@d. Pressure : about 180 kg/cm


Processing Equipment :
Varnish Roller coater on printing machine or offline varnish coating machine.
Operating Conditions :
Drying conditions : dry with short wave infrared rays.
