Single & Double Arm Micro Computer Paper Cutting Machine


¡@¡@
Machine seat is constructed & combined by high strength casting operates stably & cuts exactly.
¡@¡@
Inverter-controlled computer with 5.7 inch display highly precision cut for 0.1 mm; or with 8.4¡¨ touch
screen for 0.01 mm as an option.
¡@¡@
Cutting operation by warm wheel shaft, cutting knife is driven by worm gear, providing excellent cutting
accuracy.
¡@¡@
Specially designed powerful electromagnetic clutch to avoid unwanted second-time knife cutting.
¡@¡@
Electromagnetic hand wheel fine tuning.
¡@¡@
5.7¡¨ display build with 9800 point memory; 10.4¡¨ touch screen with 24600 point memory allows for free
size-setting to increase cutting capacity.



Special size and new-system sizes can be keyed-in during operation, convenient for the cutting of all

kinds of paper.

Hydraulic operation assures quiet cutting.







660

720

800

940

1060

Cutting thickness

120 mm

120 mm

120 mm

120 mm

120 mm

Cutting width

660 mm

720 mm

800 mm

940 mm

1060 mm

Cutting length

660 mm

720 mm

800 mm

940 mm

1060 mm

Front table length

540 mm

540 mm

540 mm

630 mm

630 mm

Table height

820 mm

820 mm

820 mm

860 mm

860 mm

Machine length

1720 mm

1780 mm

1860 mm

2130 mm

2250 mm

Machine width

1510 mm

1570 mm

1650 mm

2210 mm

2450 mm

Machine height

1470 mm

1470 mm

1470 mm

1500 mm

1500 mm

Blade motor

1.5 KW

1.5 KW

1.5 KW

1.5 KW

2.25 KW

Clamp motor

1.5 KW

1.5 KW

1.5 KW

1.5 KW

1.5 KW

Paper feeding motor

02. KW

0.2 KW

0.2 KW

0.75 KW

0.75 KW

Air table motor

X

X

X

0.375 KW

0.375 KW

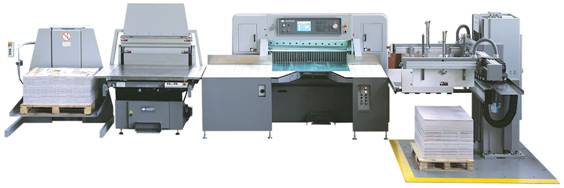

Computerized Paper Cutting Machine ¡YLOADING System

To give ideally smooth workflows for Printing company, Silk-screen printers, Label producers,
Bookbinderies and Converters.

¡@¡@Double arm cutting action driven by worm gears for each arm
¡@¡@Two hand simultaneous press-button cutting control for safe operation, complied with infra-red elec
¡@¡@¡@eye safety detection.
¡@¡@Servo motor driven back-gauge to ensure quick movement and precise positioning,,
¡@¡@Locating accuracy of the back-gauge +/- 0.01, total tolerance 0.02 mm
¡@¡@Large memory capacity for 200 courses x 99 pages
¡@¡@Air-cushioned electroplated working table.


¡@¡@¡@¡@Model

115

137

155

185

220

260

300

Design Specifications

mm

mm

mm

mm

mm

mm

mm

Cutting width

1150

1370

1550

1850

2200

2600

3000

Cutting Height

165

165

165

165

165

165

165

Cutting Length

1150

1370

1550

1850

2200

2600

3000

Front Table Length

750

750

750

750

750

750

750

Table Height

900

900

900

900

900

900

900

Smallest cut with clamp
Smallest cut without clamp

90
30
90
30
100
40
120
40
120
40
120
40
120
40

Cutting cycle per minute

48

48

42

36

36

36

36

Clamp pressure (KG)

400¡V4000

400¡V4000

400¡V4500

400¡V6000

400¡V6000

400¡V6000

400¡V6000

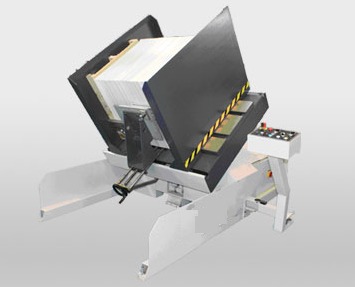

PILE TURNER not just a Turning unit to replace manpower, now it completed with

¡@¡@¡@¡@¡@¡@¡@¡@Airing - Dust removing - Drying - Aligning ¡V Jogging





PILE TURNER DPTJ-125

PAPER UNLOADER DUL-125L

Maximum Sheet Size¡@¡@80 x 129 cm

Maximum Sheet Size¡@80 x 125 cm

Maximum Pile Height¡@141 cm

Minimum Sheet Size¡@¡@80 x 40 cm

Minimum Pile Height ¡@58 cm

Maximum height of Ream¡@16.5 cm

Platform Width x Depth¡@131 cm x 82.5 cm

Maximum Stack Height¡@130 cm

Turning Diameter¡@193 cm

Minimum Stack Height¡@¡@10 cm

Carrying Capacity¡@1000 kg

Carrying Capacity¡@200 kg

Machine Weight¡@¡@1430 kg

Machine Weight¡@1150 kg

Power Consumption¡@9.4 KW

Power Consumption¡@2.3 KW

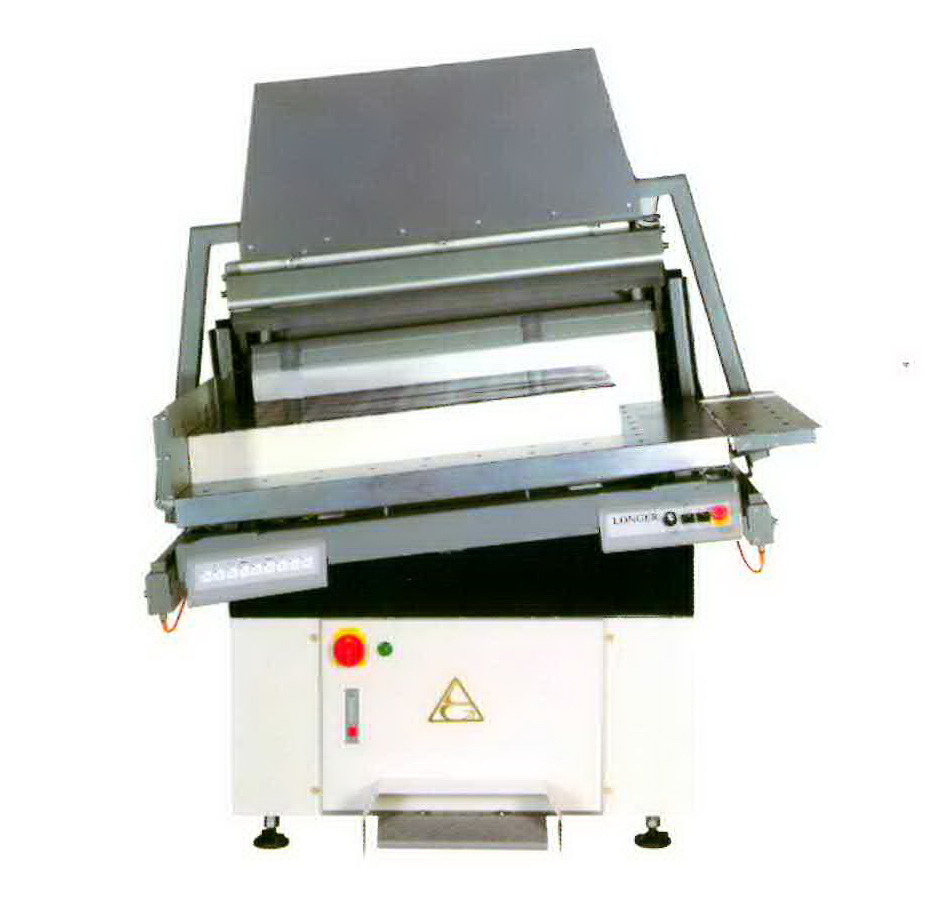

PILE TURNER not just a Turning unit to replace manpower, now it completed with
Airing - Dust removing - Drying - Aligning ¡V Jogging

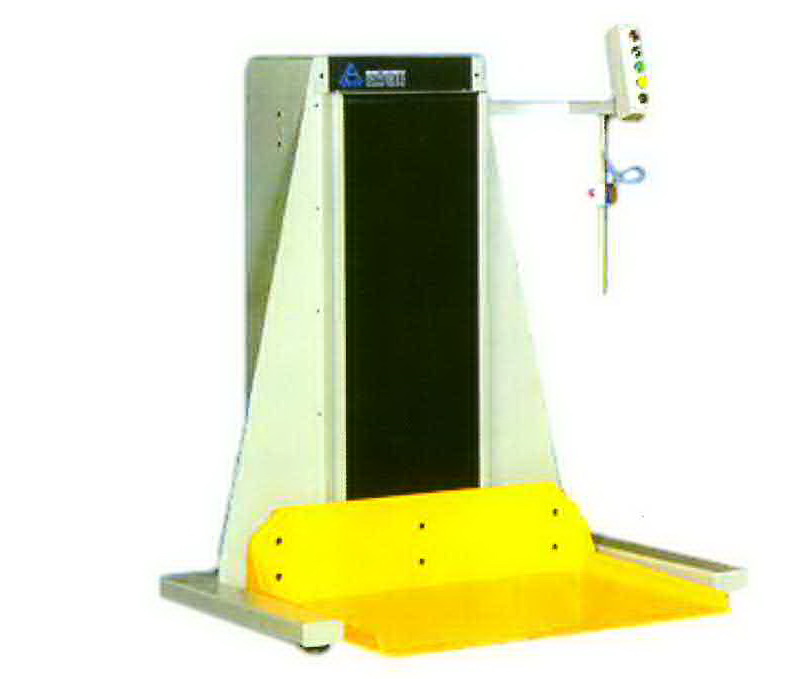

Hydraulic Lifting Machine LG-A100

Automatic Paper Jogger¡@LG-J115A

A Machine's length 1430 m/n
B Machine's width 1100 m/n
C Machine's height 1440 m/n
D The length of paper-feeding lift 1100 m/n
E The width of paper-feeding lift 750 m/n
F The maximum height of paper-feeding lift 1000 m/n
The max loading 1200 kg
The total power 1 HP
Net Weight 500 kg
Electrical Supply As required
Table size (Y) [mm| in] 900 | 35.43
Table size (X) [mm| in] 1,150 | 45.28
Width (B) [mm| in] 1,550 | 61.02
Depth (A) [mm| in] 1,290 | 50.79
Height [mm| in] 1,875 | 73.82
Weight, net [kg| Ibs] 560 | 1,232
Ream height min. [mm| in] 30 | 1.18
Ream height max. [mm| in] 165 | 6.50
Table height min. [mm| in] 860 | 33.86
Table height max. [mm| in] 950 | 37.40
