¡@¡@Automatic Diecutting and Creasing Machine

¡@¡@With Stripping Station and Maxcut Lead Edge Feeder

¡@¡@Best Choice for double wall corrugated board up to 8 mm



FEEDER
  Non-stop ¡§ L¡¨ type bottom feeding system with extended long feeding table and side lay
  Pneumatic side push guide plate (right side only)
  Motorized feeding roller
  Paper hold down pressing plate and front lay with double sheet detector
  Vacuum/blow pump
  Slow down device at front lay for gentle and precise sheet front edge registration
DIECUTTING SECTION
  Precision upper and lower platen surface
  Crank and worm gear, toggle drive system for the lower platen
  Safety system for the diecutting section
  Pneumatic clutch/brake
  State-of-the-art 3 cam index gripper chain drive
  Self-diagnostic trouble display
  Digital speed display
  Automatic recycling lubrication system with oil pressure gauge and oil pressure switch
  Sheet arrival and departure check photo sensor
  Overloading protection drive declutch
  Cutting pressure fine adjustment wheel with position indicate gauge
  8pieces of gripper bar with 12 grippers per piece
  Center line system, make the cutting die and stripping die centered quickly

STRIPPING SECTION

  Heavy duty double action stripping system
  Upper and lower stripping tool mounting frames
  Motorized upper frame suspending hoister
  Centerline system with quick lock pin on upper frame.
  Extra door with window and safety latch at drive side of the stripping section

DELIVERY

  High pile delivery system with non-stop curtain
  Electronic batch counter


MODEL

PE1620SAL-Extra

PE1620SAL- Action

PE1620SAL- Elite

PE-2100S



Lead Edge Feeder & Extended Feeding Table

Lead Edge Feeder & Extended Feeding Table

Lead Edge Feeder & Extended Feeding Table

With Servo Drive
Lead Edge Feeder

Max. sheet size

1620 x 1200 mm

1620 x 1200 mm

1620 x 1200 mm

2100 x 1300 mm

Min. sheet size

650 x 450 mm

650 x 450 mm

650 x 450 mm

850 x 600 mm

Max. cutting size

1600 x 1180 mm

1600 x 1180 mm

1600 x 1180 mm

2080 x 1280 mm

Inner chase size

1630 x 1210 mm

1630 x 1230 mm

1630 x 1230 mm

2110 x 1330 mm

Max. mechanical peed

5000 cycles/hour

5500 cycles/hour

6000 cycles/hour

4500 cycle/hour

Max. cutting pressure

400 tons

400 tons

400 tons

500 ton

Mobile lower platen adjusting range

+/- 1.5 mm

+/- 1.5 mm

+/- 1.5 mm

+/- 1.5 mm

Stock range

E,B,C, A, AB flute,
1 ¡V 8 mm

E,B,C, A, AB flute,
1 ¡V 8 mm

E,B,C, A, AB flute,
1 ¡V 8 mm

E,B,C,A, AB flute,1 ¡V 8 mm

Min. gripper waste

8 mm

12 mm

12 mm

15 mm

Min. gripper margin

6 ¡V 12 mm

6 ¡V 12 mm

6 ¡V 12 mm



Cutting rule height

23.8 mm

23.8 mm

23.8 mm

23.8 mm

Total power required

40 KW

40 KW

40 KW

50 kw

Main motor power

22 KW

22 KW

22 KW



Net weight of machine

35 ton

38 ton

38 ton

48 ton

Machine dimension
L x W x H mm

11005 x 5670 x 2480

10810 x 5898 x 2814

11770 x 5820 x 2514

11175 x 6800 x 2565

Air pump displacement

0.7 m3/min

0.7 m3/min

0.7 m3/min

0.7 m3/min

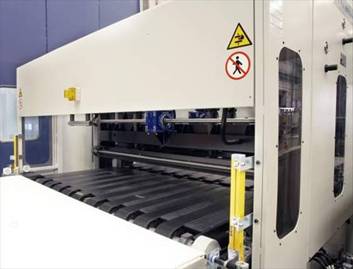

Bundle braker for die cuts 1620 model

This bundle braker is suitable to be fitted even on rotary or flat bed die cutters.
The machine separates nicks in between die cutted blanks in one direction only.
The separator is composed by two grippers one fixed and the other moving, the separation point is automatically positioned in between the two grippers, the moving one pull whilst the fixed is holding the other side of the batch, the movement is performed trough pneumatic pistons.
The transport of the batches is performed trough flat driven belts.
Because its size it¡¦s very convenient to be placed on the side of a rotary die cutter.
Typical flat bed die cutter application requires double sense separation, the machines needs therefore to be placed in corner or one after the other with a turning cross in the middle.







Machine features

Max width passage 1800 mm
Min batch dimension in machine direction 200 mm
Max Batch thickness 300 mm
Min Batch thickness 20 mm
Batch passage height from the floor 900 mm (adjustable)
Full PLC control
