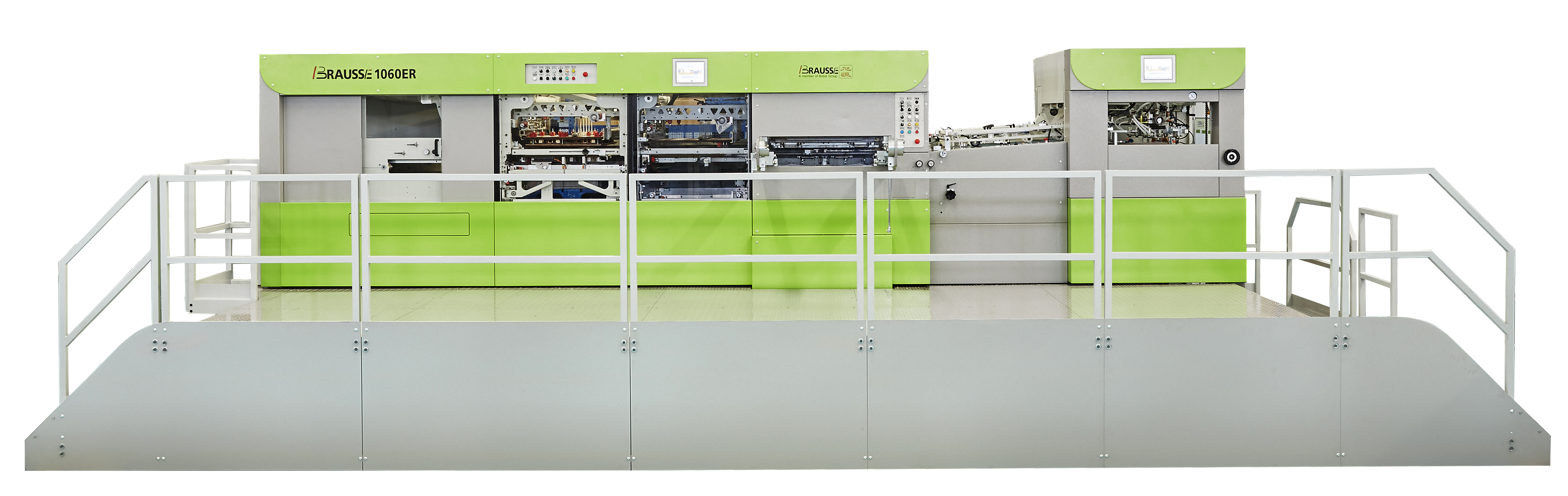

Latest technology developed with Group support at affordable price, great price/performance ratio;
Feeder based on Group standard technical platform feeding precisely and consistently wide range stock from 90 gram thin paper to 1000gm cardboard as well as micro flute corrugated board;
Ultrasonic double sheet control with no touch on the paper, hence scratch free , reliable and quick set up ( optional );
Pull and Push convertible side lay of simple mechanism and driven by optimized cam curve for easy handling of wide stock range;
Sheet arrival photo sensor at front lay and side lay detects wide range property paper stock: transparent, silver and black;
Two 10.4 inch wide colour HMI in the local language located in convenient operation spot , very operator friendly;
8 gripper bars of the state of art Group latest technology running extreme smoothly, thanks to the unique design of large motion angle eccentric worm gear drive system which allows minimum number and size of nicks at reasonable maximum production speed;
High quality and precision casting iron platen and wall frames of most optimized structure ensures minimum make ready time and consistent pressure during production;
5mm hardened cutting plate or 4+1mm sandwich plate on top 15 mm precision synthetic supporting plate with +/-1mm micro adjustment for quick set up and easy make ready;
Digital strain gauge diecutting pressure tonnage display at HMI with adjustable pressure limit protection;
Motorized impression on/off and fine tonnage adjustment during production;
Most efficient and smooth cam running curve drives the stripping and blanking tooling with large motion angle to ensure clean and tiny stripping and blanking at speed;
BSSR quick tooling set up system permits fast job change over and hence high productivity at both stripping and blanking station;
Standard 200 mm high raiser for longer running time with one sheet pile;
Sheet take out at stripping and blanking station for inspection with one button;
Automatic binder sheet inserter with electrical sheet presence control at blanking station;
Automatic selection of suction cups according to the sheet size at blanking station;
Adjustable pile height for better pile symmetry;
Waste or skeleton removal apron;
Full sheet delivery at blanking station (optional);
Group high standard CE certification.
¡@¡@¡@¡@106 CE Automatic Diecutting and Creasing Machine
¡@¡@¡@¡@¡@¡@¡@with Stripping Station and Gripper Edge Waste Removal
¡@¡@¡@¡@¡@¡@ A super fast automatic flatbed diecutter, build with high tech integration of speed, precision,
¡@¡@¡@¡@¡@¡@ tonnage,safety and ergonomic. Maximum mechanical speed 9000 sheets per hour
¡@¡@¡@¡@¡@¡@It is of the best price/performance ratio, and of course your best choice.
¡@FEEDING SECTION
¡@¡@Special forwarding suction head movement in perfect timing with pick up sucker for precision sheet
¡@¡@¡@feeding in wide range from thin paper to B-Flute corrugated board.
¡@FEEDING TABLE
¡@¡@Inclined feeding table with one wheel central adjustment brush/roller assembly position adjustment
¡@¡@¡@greatly ease the set up, further shorten the change over time.
¡@DIECUTTING SECTION
¡@¡@24 mm synthetic fibre base board plus 4 mm special hardened steel cutting plate with four way
¡@¡@¡@ micro adjustment means quick and easy make ready
¡@DELIVERY SECTION
¡@¡@Down stacking auxiliary non-stop curtain largely extends the pile discharge time, also helps in
¡@¡@¡@single sheet taking out for quality control during the run.
¡@TOUCH SCREEN
¡@¡@Mobile touch screen operation panel gives total control of the machine, from job setting, running
¡@¡@¡@to fault diagnosis.
¡@STRIPPING SECTION
¡@¡@Upper, middle and lower stripping frame are all of draw type with quick locking and center line
¡@¡@¡@system.Upper frame can be raised up for 320 mm, more space for easy access, short change
¡@¡@¡@over time and operator friendly.
¡@¡@
¡@¡@
MODEL
106 CE
1050SE
SMOOTH-1450SE
Max. sheet size
1060 x 750 mm
1050 x 750 mm
1450 x 1100 mm
Min. sheet size
400 x 350 mm
400 x 360 mm
700 x 500 mm
Max. cutting size
1040 x 730 mm
1040 x 720 mm
1430 x 1080 mm
Inner chase size
1060 x 760 mm
1100 x 745 mm
1450 x 1087 mm
Cutting plate size
1070 x 756 mm
1472 x 1086 mm
Max. mechanical speed
9000 sheet/hr
7500 cycles/hour
5500 cycles/hour
Max. cutting pressure
300 tons
300 tons
400 tons
Stock range
90-600 g/m2 card board;
Corrugated board ¡Ø4 mm
80 ¡V 600 g/m2 card board.
Corrugated board ¡Ø4 mm
0.2¡V2 mm solid board;
F,E, B-flute 0.7 - 4.5 mm
Standard gripper waste
12 mm
Min. gripper waste
9 mm
8 mm
10 mm
Total power required
30 KW
20 KW
36 KW
Main motor power
15 KW
11 KW
22 KW
Machine net weight
20 tons
16 tons
28 tons
Machine dimension
L x W x H
7119 x 4016 x 2423 mm
7060 x 3900 x 2050 mm
9880 x 5270 x 2580 mm
Air pump displacement
0.36 m3/min
Prepared by Users.
0.35 m3/min
Prepared by Users.
¡@¡@¡@¡@¡@AUTOMATIC FLATBED DIECUTTING AND CREASING MACHINE
